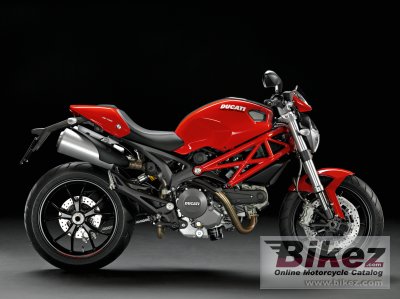

Ducati Monster 796 20122012 Ducati Monster 796 specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The Monster 796 is the perfect synthesis between sports performances, aesthetics and daily riding pleasure. Cared for in each single detail, it is the ideal bike for each riding style and represents the utmost evolution of the Monster family. |
| General information | |
|---|---|
| Model | Ducati Monster 796 |
| Year of manufacture | 2012 |
| Type | Naked bike |
| Rating | 3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 803.0 ccm (49.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | L-Twin cylinder |
| Output | 85.8 HP (62.6 kW)) @ 8250 RPM |
| Torque | 58.0 Nm (5.9 kgf-m or 42.8 ft.lbs) @ 6250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 88.0 x 66.0 mm (3.5 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 39 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Front suspension | Marzocchi 43mm upside-down forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Optional Anti-Lock braking |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Wheels | Y-shaped, 5-spoke in light alloy |
| Physical measures and capacities | |
| Dry weight | 167.0 kg (368.2 pounds) |
| Power/weight ratio | 0.5140 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Red/black, Arctic white silk/red/black), Diamond black silk/red/black, Various Monster Art colours paint. |
| Starter | Electric |
| Factory warranty | 24 months unlimited mileage |
