General information |
Model name
|

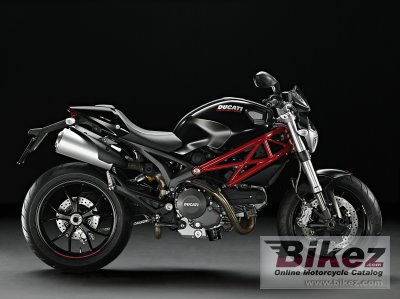

Ducati Monster 796 |
Year
|
2011 |
Category
|
Naked bike |
Price as new | US$ 9995. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
803.0 ccm (49.00 cubic inches) |
Engine type
|
V2, four-stroke |
Power
|
85.8 HP (62.6 kW)) @ 8250 RPM |
Torque
|
58.0 Nm (5.9 kgf-m or 42.8 ft.lbs) |
Compression
|
11.0:1 |
Bore x stroke
|
88.0 x 66.0 mm (3.5 x 2.6 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
Fuel control
|
Desmodromic valve control |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
APTC wet multiplate with hydraulic control |
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39 |
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular steel Trellis frame |
Rake (fork angle)
|
24.0° |
Front suspension
|
Marzocchi 43mm upside-down forks |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Progressive linkage with preload and rebound Sachs adjustable monoshock |
Rear wheel travel
|
148 mm (5.8 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc. Optional Anti-Lock braking |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Dry weight
|
167.0 kg (368.2 pounds) |
Power/weight ratio
|
0.5140 HP/kg |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Wheelbase
|
1450 mm (57.1 inches) |
Fuel capacity
|
15.00 litres (3.96 US gallons) |
Other specifications |
Color options
|
Red (red/back), Arctic white silk (red/back), Diamond black silk (red/back), Monster Art colours (red/back) |
Starter
|
Electric |
Factory warranty
|
2 years unlimited mileage |
