General information |
|
Model name
|

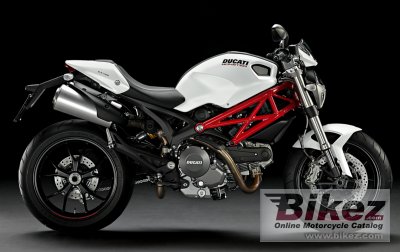

Ducati Monster 796 |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
803.0 ccm (49.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
85.8 HP (62.6 kW)) @ 8250 RPM |
|
Torque
|
58.0 Nm (5.9 kgf-m or 42.8 ft.lbs) @ 6250 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
88.0 x 66.0 mm (3.5 x 2.6 inches) |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Showa 43mm upside-down forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive linkage with preload and rebound Sachs adjustable monoshock |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
167.0 kg (368.2 pounds) |
|
Power/weight ratio
|
0.5140 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Red, white, black |
|
Starter
|
Electric |
|
Comments
|
Optional ABS. |
