General information |
|
Motorcycle name
|

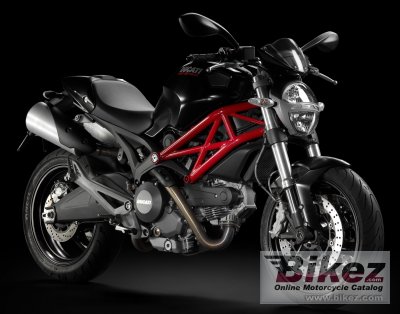

Ducati Monster 795 ABS |
|
Model year
|
2013 |
|
Category
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
803.0 ccm (49.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
85.8 HP (62.6 kW)) @ 8250 RPM |
|
Torque
|
78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 8000 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
88.0 x 66.0 mm (3.5 x 2.6 inches) |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body with stepper motor |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.85. |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and twin lambda probes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chrome moly steel trellis, casted aluminium subframe |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
87 mm (3.4 inches) |
|
Front suspension
|
43mm upside-down forks |
|
Rear suspension
|
Double sides swingarm |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc. ABS. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS. Two-piston calipers. |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
169.0 kg (372.6 pounds) |
|
Weight incl. oil, gas, etc
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.5079 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
|
Starter
|
Electric |
|
Instruments
|
Digital unit displaying Speedometer, rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system. |
|
Factory warranty
|
2 years unlimited mileage |
