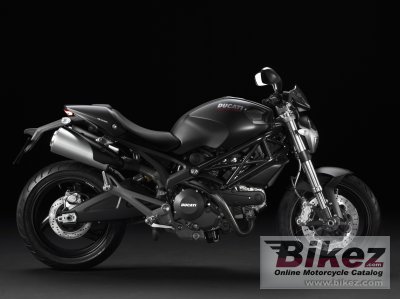

Ducati Monster 696 20122012 Ducati Monster 696 specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The ´less-is-more´ philosophy behind all Monsters underlines Ducati´s never-ending pursuit of genuinely compact, high performance motorcycles, but these new models have succeeded in being even more ´pared down´ than their predecessors. |
| General information | |
|---|---|
| Motorcycle name | Ducati Monster 696 |
| Year | 2012 |
| Category | Naked bike |
| Rating | 2.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 696.0 ccm (42.47 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | L-Twin cylinder |
| Power | 78.9 HP (57.6 kW)) @ 9000 RPM |
| Torque | 50.6 Nm (5.2 kgf-m or 37.3 ft.lbs) @ 7750 RPM |
| Compression | 10.7:1 |
| Bore x stroke | 88.0 x 57.2 mm (3.5 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 45 |
| Emission details | Euro 3. Follows the US Federal Regulation |
| Exhaust system | 2 aluminum mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Front suspension | Marzocchi 43mm upside-down forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/60-17 |
| Rear tire | 160/60-17 |
| Front brakes | Double disc. Optional ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Optional ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 161.0 kg (354.9 pounds) |
| Power/weight ratio | 0.4898 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Red, Black, White, Various Monster Art multicolour paints. |
| Starter | Electric |
| Instruments | Digital unit |
| Factory warranty | 2 years unlimited mileage |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Ducati Monster 696 discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
