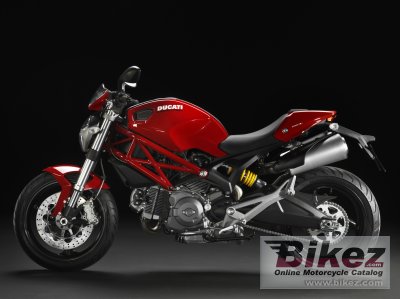

Ducati Monster 696 20112011 Ducati Monster 696 specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| When you choose to ride the Monster, you are not just choosing a bike, but an entire lifestyle. A desire to experience the exhilaration of naked power from an iconic motorcycle. |
| General information | |
|---|---|
| Motorcycle name | Ducati Monster 696 |
| Model year | 2011 |
| Category | Naked bike |
| Price as new | US$ 8495. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 696.0 ccm (42.47 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 78.9 HP (57.6 kW)) @ 9000 RPM |
| Torque | 50.6 Nm (5.2 kgf-m or 37.3 ft.lbs) |
| Compression | 10.7:1 |
| Bore x stroke | 88.0 x 57.2 mm (3.5 x 2.3 inches) |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 45 |
| Emission details | Follows the US Federal Regulation |
| Exhaust system | 2 aluminum mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Front suspension | Marzocchi 43mm upside-down forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/60-17 |
| Rear tire | 160/60-17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Red (red/black), Dark stealth (matt black/black), Stone white (matt black/black), Monster Art colours (matt black/black) |
| Starter | Electric |
| Instruments | Digital unit displaying |
| Factory warranty | 2 years unlimited mileage |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Ducati Monster 696 discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
