General information |
|
Model name
|

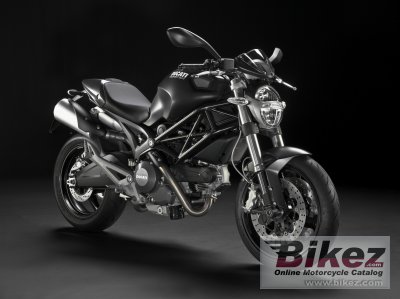

Ducati Monster 696 |
|
Model year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
696.0 ccm (42.47 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
78.9 HP (57.6 kW)) @ 9000 RPM |
|
Torque
|
50.6 Nm (5.2 kgf-m or 37.3 ft.lbs) |
|
Top speed
|
210.0 km/h (130.5 mph) |
|
Compression
|
10.7:1 |
|
Bore x stroke
|
88.0 x 57.2 mm (3.5 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Ignition
|
Marelli electronic |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Driveline
|
Chain; front sprocket 15; rear sprocket 39 |
|
Fuel consumption
|
6.10 litres/100 km (16.4 km/l or 38.56 mpg) |
|
Greenhouse gases
|
141.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
87 mm (3.4 inches) |
|
Front suspension
|
Showa 43mm upside-down forks |
|
Rear suspension
|
Progressive linkage with preload and rebound Sachs adjustable monoshock |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
3-spoke light alloy |
|
Physical measures and capacities |
|
Dry weight
|
161.0 kg (354.9 pounds) |
|
Power/weight ratio
|
0.4898 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
White, black, red |
|
Starter
|
Electric |
