Ducati Monster 620 i.e. Dark Single Disc 20042004 Ducati Monster 620 i.e. Dark Single Disc specifications, pictures, reviews and rating |

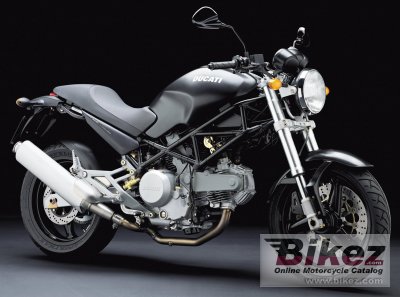

2004 Ducati Monster 620 i.e. Dark Single Disc. Image credits - Ducati.
| General information | |
|---|---|
| Model name | Ducati Monster 620 i.e. Dark Single Disc |
| Year model | 2004 |
| Type | Naked bike |
| Rating | 3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 618.0 ccm (37.71 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 60.0 HP (43.8 kW)) @ 8250 RPM |
| Torque | 53.3 Nm (5.4 kgf-m or 39.3 ft.lbs) @ 6500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 80.0 x 61.8 mm (3.1 x 2.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel trellis |
| Rake (fork angle) | 24.0° |
| Front suspension | 43 mm upside-down |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Progressive linkage with Sachs adjustable monoshock. |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/60-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 177.0 kg (390.2 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1212 mm (47.7 inches) |
| Overall length | 2100 mm (82.7 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Black with matte black tank |
