General information |
|
Model
|

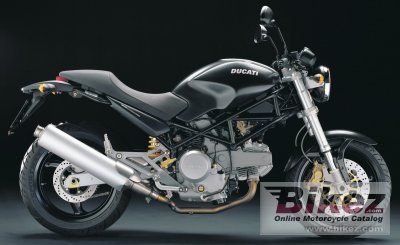

Ducati Monster 620 i.e. Dark |
|
Model year
|
2004 |
|
Category
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
618.0 ccm (37.71 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
60.0 HP (43.8 kW)) @ 8250 RPM |
|
Torque
|
53.3 Nm (5.4 kgf-m or 39.3 ft.lbs) @ 6500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
80.0 x 61.8 mm (3.1 x 2.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
43 mm upside-down |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with Sachs adjustable monoshock. |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
177.0 kg (390.2 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1212 mm (47.7 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Color options
|
Black, metallic grey with matte black, matte silver tank |
