General information |
|
Motorcycle name
|

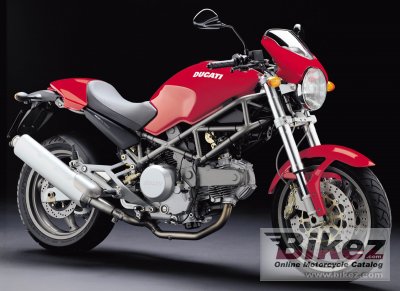

Ducati Monster 620 i.e. |
|
Year of manufacture
|
2004 |
|
Type
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
618.0 ccm (37.71 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
60.0 HP (43.8 kW)) @ 8250 RPM |
|
Torque
|
53.3 Nm (5.4 kgf-m or 39.3 ft.lbs) @ 6500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
80.0 x 61.8 mm (3.1 x 2.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
43 mm upside-down |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with Sachs adjustable monoshock. |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
177.0 kg (390.2 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1212 mm (47.7 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Color options
|
Metallic grey with red, yellow or black tank |
|
Comments
|
The 620 is the perfect entry to the Monster family. Easy to maintain, it is the lightest and easiest handling Ducati. The motorcycle of choice for the official Ducati riding courses, the 620 offers a low seat height, a new slipper clutch for seamless shifting, a new, colour-matched front fairing, newly designed mirrors for increased visibility, and a comfortable, upright riding position.
|
