General information |
|
Model name
|

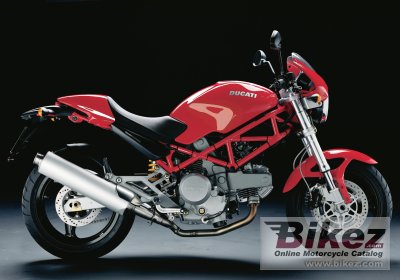

Ducati Monster 620 |
|
Model year
|
2006 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
618.0 ccm (37.71 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
62.2 HP (45.4 kW)) @ 9500 RPM |
|
Torque
|
41.2 Nm (4.2 kgf-m or 30.4 ft.lbs) |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
80.0 x 61.5 mm (3.1 x 2.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 45 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Exhaust system
|
2 aluminium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Front suspension
|
43 mm upside-down fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with adjustable Sachs monoshock |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Power/weight ratio
|
0.3704 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
black/matte black, red/black |
|
Starter
|
Electric |
