General information |
|
Model name
|

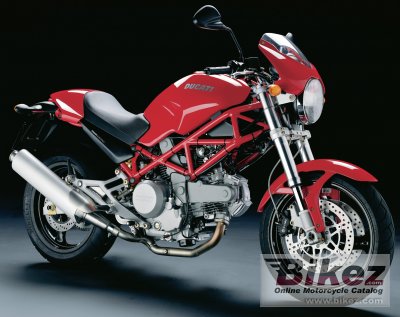

Ducati Monster 620 |
|
Year of manufacture
|
2005 |
|
Type
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
618.0 ccm (37.71 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
83.4 HP (60.9 kW)) @ 9500 RPM |
|
Torque
|
57.0 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 6750 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
80.0 x 61.5 mm (3.1 x 2.4 inches) |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 45 mm throttle body |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
43 mm upside-down fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with adjustable Sachs monoshock |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/60-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Power/weight ratio
|
0.4966 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Glossy black/black, red/black,metallic dark grey/metallic grey/fluorescent red |
