General information |
|
Model name
|

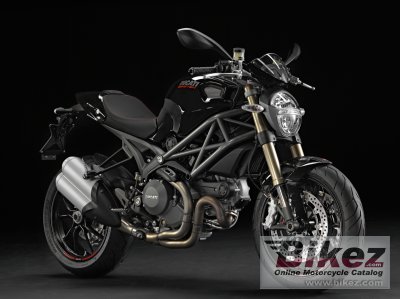

Ducati Monster 1100 Evo |
|
Model year
|
2012 |
|
Category
|
Naked bike |
|
Rating
|
4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1078.0 ccm (65.78 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
100.0 HP (73.0 kW)) @ 7500 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate with hydraulic control |
|
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39 |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Marzocchi 43mm fully adjustable usd forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive with preload and rebound Sachs adjustable monoshock |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Aluminum alloy, 10-spoke |
|
Physical measures and capacities |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Red with white stripe/black, Diamond Black with Racing grey stripe/black |
|
Starter
|
Electric |
|
Factory warranty
|
2 years unlimited mileage |
