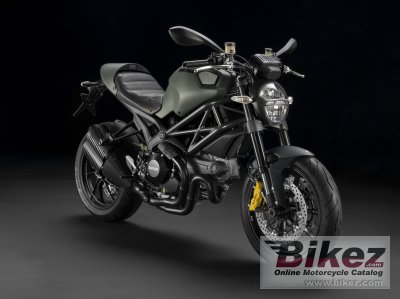

Ducati Monster 1100 Diesel 20122012 Ducati Monster 1100 Diesel specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The Diesel Style Team, under the guidance of Diesel founder Renzo Rosso, together with Ducati´s Design Centre, have brought a new ‘urban military chic´ interpretation to the iconic naked motorcycle. |
| General information | |
|---|---|
| Model | Ducati Monster 1100 Diesel |
| Model year | 2012 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1078.0 ccm (65.78 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Type L-Twin cylinder |
| Power output | 100.0 HP (73.0 kW)) @ 7500 RPM |
| Torque | 103.1 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 6000 RPM |
| Compression | 11.3:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 39 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Front suspension | Marzocchi 43mm fully adjustable usd forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Progressive with preload and rebound Sachs adjustable monoshock |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. 4-piston radial calliper with ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston radial calliper with ABS |
| Diameter | 245 mm (9.6 inches) |
| Wheels | 10-spoke in light alloy |
| Seat | Dual seat |
| Physical measures and capacities | |
| Dry weight | 169.0 kg (372.6 pounds) |
| Power/weight ratio | 0.5917 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Military green/black |
| Starter | Electric |
| Instruments | Digital unit displaying: Speedometer, rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, warning ABS, overrev, DTC, immobilizer. Ready for DDA system. |
| Factory warranty | 2 years unlimited mileage |
