General information |
|
Motorcycle name
|

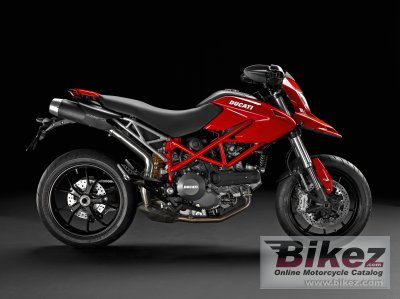

Ducati Hypermotard 796 |
|
Year of manufacture
|
2012 |
|
Type
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
803.0 ccm (49.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
81.0 HP (59.1 kW)) @ 8000 RPM |
|
Torque
|
75.5 Nm (7.7 kgf-m or 55.7 ft.lbs) @ 7700 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
88.0 x 66.0 mm (3.5 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC wet multiplate with hydraulic control |
|
Driveline
|
Chain, Front sprocket 15, Rear sprocket 41 |
|
Emission details
|
Euro 3 (Europe) - USA: follows the US Federal Regulation |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Marzocchi 43mm usd forks |
|
Front wheel travel
|
165 mm (6.5 inches) |
|
Rear suspension
|
Progressive linkage with adjustable Sachs monoshock. Aluminium single-sided swingarm |
|
Rear wheel travel
|
141 mm (5.6 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
5-spoke in light alloy |
|
Physical measures and capacities |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1455 mm (57.3 inches) |
|
Fuel capacity
|
12.40 litres (3.28 US gallons) |
|
Other specifications |
|
Color options
|
Red, Matt black, Matt white |
|
Starter
|
Electric |
|
Instruments
|
Digital unit with displays for Speedometer, rev counter, lap times, time, oil temp, battery voltage, A and B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system |
|
Factory warranty
|
2 years unlimited mileage |
