General information |
|
Motorcycle name
|

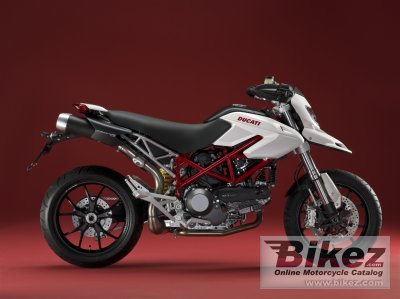

Ducati Hypermotard 1100 |
|
Year of manufacture
|
2009 |
|
Type
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1078.0 ccm (65.78 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
90.0 HP (65.7 kW)) @ 7750 RPM |
|
Torque
|
103.1 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 10500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry multiplate with hydraulic control |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and lambda probe. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Marzocchi 50mm fully adjustable upside-down fork |
|
Front wheel travel
|
165 mm (6.5 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
|
Rear wheel travel
|
141 mm (5.6 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
179.0 kg (394.6 pounds) |
|
Power/weight ratio
|
0.5028 HP/kg |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1455 mm (57.3 inches) |
|
Fuel capacity
|
12.40 litres (3.28 US gallons) |
|
Other specifications |
|
Color options
|
Red(Red/Black), White (Red/Black) |
|
Starter
|
Electric |
|
Comments
|
Speedometer, rev counter, clock, maintenance schedule, oil temperature, oil pressure warning light, battery level, fuel reserve warning light, trip fuel, indicator light, neutral light, injection system diagnostics, lap time memory storage, automatic light-off function after 60 secs key-on, immobiliser. The instrument panel menu functions are controlled from the left-hand switchgear. Ready for DDA system. |
