General information |
|
Model name
|

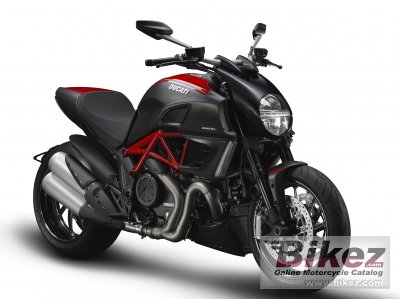

Ducati Diavel Carbon |
|
Model year
|
2011 |
|
Category
|
Naked bike |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1198.4 ccm (73.13 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Type Testastretta 11°, L-Twin cylinder |
|
Power output
|
162.0 HP (118.2 kW)) @ 9500 RPM |
|
Torque
|
127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 8000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
106.0 x 67.9 mm (4.2 x 2.7 inches) |
|
Fuel system
|
Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run |
|
Driveline
|
Front sprocket 15; Rear sprocket 43 |
|
Emission details
|
Standard |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
28.0° |
|
Front suspension
|
Marzocchi DLC coated 50mm fully adjustable usd forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
240/45-ZR17 |
|
Front brakes
|
Double disc. Brembo callipers, 4-piston with ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston floating calliper with ABS |
|
Diameter
|
265 mm (10.4 inches) |
|
Seat
|
Dual seat |
|
Physical measures and capacities |
|
Dry weight
|
207.0 kg (456.4 pounds) |
|
Power/weight ratio
|
0.7826 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1590 mm (62.6 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Red and Matt Carbon (red/black), Glossy and Matt Carbon (racing black/black) |
|
Instruments
|
Handlebar mounted instrumentation with LCD display |
|
Factory warranty
|
2 year |
