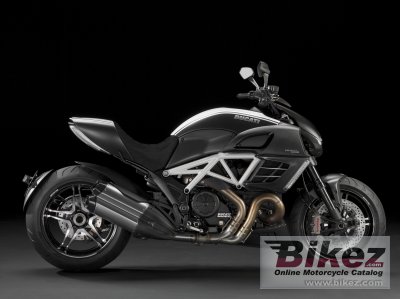

Ducati Diavel AMG 20122012 Ducati Diavel AMG specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| Ducati has celebrated its partnership with AMG by producing the Diavel AMG Special Edition, inspired by the German maker´s unmistakeable styling. Combining exclusivity with high performance, the Diavel AMG Special Edition is the perfect synthesis of two unequalled brands with a shared passion for exceptional achievement, unique design and conscientious attention to detail. |
| General information | |
|---|---|
| Model name | Ducati Diavel AMG |
| Year | 2012 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1198.4 ccm (73.13 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Type Testastretta 11°, L-Twin cylinder |
| Power | 162.0 HP (118.2 kW)) @ 9500 RPM |
| Torque | 127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 8000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 106.0 x 67.9 mm (4.2 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
| Driveline | Straight cut gears, ratio 1.84:1 primary drive. Front sprocket 15; Rear sprocket 43 final drive. |
| Emission details | Euro 3 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers. Features a sport exhaust system (approved for EU countries only) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Front suspension | Marzocchi DLC coated 50mm fully adjustable usd forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 240/45-ZR17 |
| Front brakes | Double disc. Brembo callipers, 4-piston with ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston floating calliper with ABS |
| Diameter | 265 mm (10.4 inches) |
| Wheels | Marchesini forged and machined 5-spoke |
| Physical measures and capacities | |
| Dry weight | 207.0 kg (456.4 pounds) |
| Power/weight ratio | 0.7826 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1590 mm (62.6 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | White/matt carbon |
| Instruments | Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 and 2, fuel reserve trip, average and actual fuel consumption and speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS. |
| Factory warranty | 24 months unlimited mileage |
