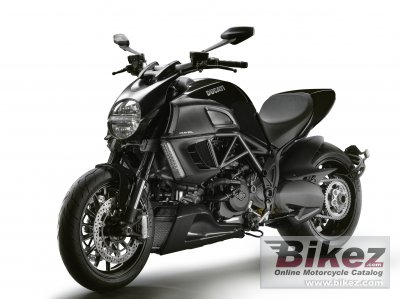

Ducati Diavel 20122012 Ducati Diavel specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| Weighing just 210 kg, featuring a powerful sophisticated design and offering a massive 162 hp that is managed to perfection via the three Riding Modes, the Diavel is an utterly spellbinding bike that only Ducati could have come up with. |
| General information | |
|---|---|
| Model name | Ducati Diavel |
| Year of manufacture | 2012 |
| Type | Naked bike |
| Rating | 4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 1198.4 ccm (73.13 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Type Testastretta 11°, L-Twin cylinder |
| Output | 162.0 HP (118.2 kW)) @ 9500 RPM |
| Torque | 127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 8000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 106.0 x 67.9 mm (4.2 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
| Driveline | Straight cut gears, ratio 1.84:1 primary drive. Front sprocket 15; Rear sprocket 43 final drive. |
| Emission details | Euro 3 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 28.0° |
| Front suspension | Marzocchi 50mm fully adjustable usd forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 240/45-ZR17 |
| Front brakes | Double disc. Brembo callipers, 4-piston with ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston floating calliper with ABS |
| Diameter | 265 mm (10.4 inches) |
| Wheels | 14-spoke in light alloy |
| Seat | Dual seat |
| Physical measures and capacities | |
| Dry weight | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.7714 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1590 mm (62.6 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | Red, Diamond Black |
| Starter | Electric |
| Instruments | Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 and 2, fuel reserve trip, average and actual fuel consumption and speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS. |
| Factory warranty | 2 years unlimited mileage |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Ducati Diavel discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
