General information |
|
Model
|

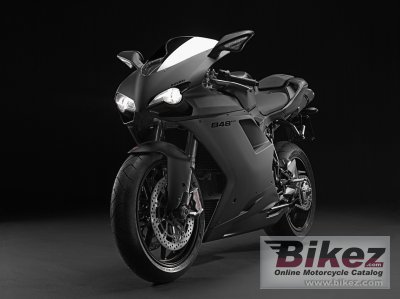

Ducati 848 EVO Dark |
|
Model year
|
2013 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
849.4 ccm (51.83 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
138.1 HP (100.8 kW)) @ 10500 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 9750 RPM |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
94.0 x 61.2 mm (3.7 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, elliptical throttle bodies |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multiplate with hydraulic control |
|
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.84. |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
lightweight 2-1-2 system equipped with a catalytic converter and 2 lambda probes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame in ALS 450. Front subframe in magnesium. |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Showa 43mmfully adjustable usd forks |
|
Rear suspension
|
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Floating discs. Four-piston calipers. Radially mounted. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
5-spoke in light alloy 3.50 x 17 |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Weight incl. oil, gas, etc
|
194.0 kg (427.7 pounds) |
|
Power/weight ratio
|
0.8222 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Instruments
|
Digital MotoGP derived unit. |
|
Factory warranty
|
2 years unlimited mileage |
