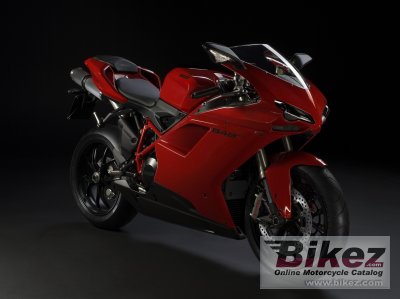

Ducati 848 EVO 20132013 Ducati 848 EVO specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The 140 hp of the Testastretta Evoluzione engine and the awesome braking power of Brembo monobloc calipers take the performance level of the 848EVO - Ducati´s lightest ever Superbike - to the extreme. Joining the Ducati Superbike world has never been so thrilling. |
| General information | |
|---|---|
| Motorcycle name | Ducati 848 EVO |
| Model year | 2013 |
| Category | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 849.4 ccm (51.83 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 138.1 HP (100.8 kW)) @ 10500 RPM |
| Torque | 98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 9750 RPM |
| Compression | 13.2:1 |
| Bore x stroke | 94.0 x 61.2 mm (3.7 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Marelli electronic fuel injection, elliptical throttle bodies |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.84. |
| Emission details | Euro 3 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame in ALS 450 |
| Rake (fork angle) | 24.5° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | Showa 43mmfully adjustable usd forks |
| Rear suspension | Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. Floating discs. Four-piston calipers. Radially mounted. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Weight incl. oil, gas, etc | 194.0 kg (427.7 pounds) |
| Power/weight ratio | 0.8222 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 15.50 litres (4.10 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Instruments | Digital MotoGP derived unit. |
| Factory warranty | 2 years unlimited mileage |
