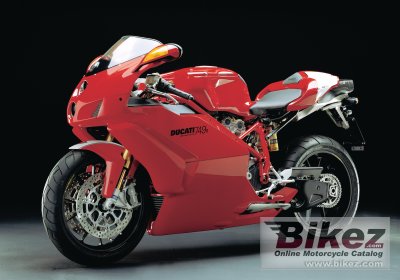

Ducati 749 R 20062006 Ducati 749 R specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The 749R, designed to race in the World Supersport Championship, is an outstanding racing machine. It features the most powerful mid-size Testastretta engine produced by Ducati together with a state-of-the-art chassis set up, both developed for top track performance. |
| General information | |
|---|---|
| Model name | Ducati 749 R |
| Year | 2006 |
| Category | Sport |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 749.0 ccm (45.70 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 119.5 HP (87.2 kW)) @ 10500 RPM |
| Torque | 84.3 Nm (8.6 kgf-m or 62.2 ft.lbs) @ 8250 RPM |
| Top speed | 257.5 km/h (160.0 mph) |
| Compression | 12.7:1 |
| Bore x stroke | 94.0 x 54.0 mm (3.7 x 2.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Marelli electronic fuel injection, 54 mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel trellis |
| Rake (fork angle) | 23.5° |
| Front suspension | Öhlins 43 mm upside-down fully adjustable fork with TiN surface treatment, for radial calipers |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with fully adjustable Öhlins monoshock |
| Rear wheel travel | 128 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 183.5 kg (404.5 pounds) |
| Power/weight ratio | 0.6511 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall length | 2095 mm (82.5 inches) |
| Wheelbase | 1420 mm (55.9 inches) |
| Fuel capacity | 18.30 litres (4.83 US gallons) |
| Other specifications | |
| Color options | Red, yellow, black |
| Starter | Electric |
