General information |
|
Motorcycle name
|

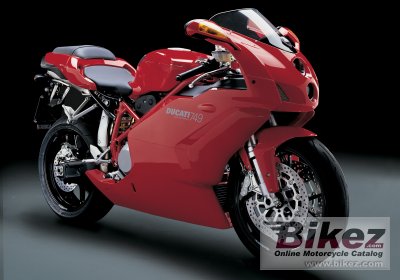

Ducati 749 |
|
Model year
|
2006 |
|
Category
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
748.0 ccm (45.64 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
106.6 HP (77.8 kW)) @ 10000 RPM |
|
Torque
|
84.3 Nm (8.6 kgf-m or 62.2 ft.lbs) @ 8500 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
90.0 x 58.8 mm (3.5 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 54 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry multiplate with hydraulic control |
|
Exhaust system
|
Single steel muffler with catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.5° |
|
Front suspension
|
Showa 43 mm upside-down fully adjustable fork |
|
Front wheel travel
|
125 mm (4.9 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Sachs monoshock |
|
Rear wheel travel
|
128 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
188.0 kg (414.5 pounds) |
|
Power/weight ratio
|
0.5671 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
