1977 Ducati 500 GTV

Ducati 500 GTV 1977


1977 Ducati 500 GTV specifications, pictures, reviews and rating

1977 Ducati 500 GTV

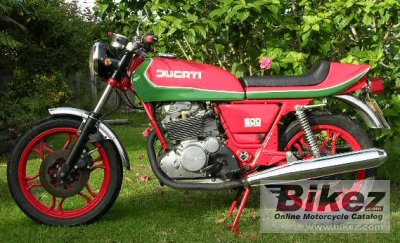

1977 Ducati 500 GTV. Picture submitted by anonymous user.. Submit more pictures.
General information
Model name Ducati 500 GTV
Year 1977
Category Touring
Rating 3.0  See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Displacement 497.0 ccm (30.33 cubic inches)
Engine type Twin, four-stroke
Power 39.0 HP (28.5 kW)) @ 7500 RPM
Top speed 165.0 km/h (102.5 mph)
Compression 9.6:1
Bore x stroke 78.0 x 52.0 mm (3.1 x 2.0 inches)
Valves per cylinder 2
Fuel control Overhead Cams (OHC)
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 3.25-18
Rear tire 3.50-18
Front brakes Dual disc
Rear brakes Single disc
Physical measures and capacities
Weight incl. oil, gas, etc 195.0 kg (429.9 pounds)
Fuel capacity 14.00 litres (3.70 US gallons)
Other specifications
