General information |
|
Model name
|

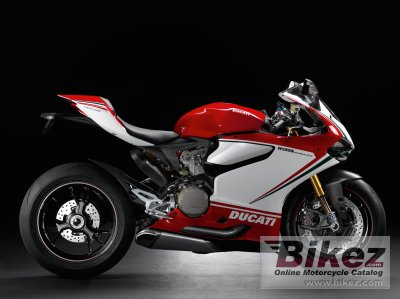

Ducati 1199 Panigale S Tricolore |
|
Year of manufacture
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1198.0 ccm (73.10 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
L-twin cylinder |
|
Output
|
195.0 HP (142.3 kW)) @ 10750 RPM |
|
Torque
|
132.0 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 9000 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
112.0 x 60.8 mm (4.4 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Slipper and self-servo wet multiplate clutch with hydraulic control |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Ducati performance exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Monocoque aluminium |
|
Rake (fork angle)
|
24.5° |
|
Front suspension
|
Öhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment |
|
Rear suspension
|
Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm. |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
200/55-ZR17 |
|
Front brakes
|
Double disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers. ABS. |
|
Diameter
|
330 mm (13.0 inches) |
|
Rear brakes
|
Single disc. 2-piston calliper. ABS. |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Marchesini wheels, 3 spoke forged light alloy |
|
Seat
|
2-person seat |
|
Physical measures and capacities |
|
Dry weight
|
166.0 kg (366.0 pounds) |
|
Weight incl. oil, gas, etc
|
190.0 kg (418.9 pounds) |
|
Power/weight ratio
|
1.1747 HP/kg |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1437 mm (56.6 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Red/white/green |
|
Starter
|
Electric |
|
Instruments
|
TFT |
|
Light
|
Full LED lighting |
|
Factory warranty
|
2 years |
|
Comments
|
Ride by Wire technonlogy |
