General information |
|
Model name
|

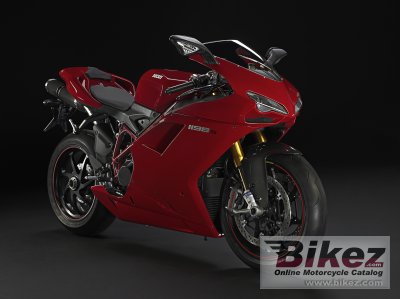

Ducati 1198 S |
|
Year model
|
2010 |
|
Type
|
Sport |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1198.4 ccm (73.13 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
170.0 HP (124.1 kW)) @ 9750 RPM |
|
Torque
|
131.5 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM |
|
Compression
|
12.7:1 |
|
Bore x stroke
|
106.0 x 67.9 mm (4.2 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, elliptical throttle bodies. |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry multiplate with hydraulic control |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame in ALS 450 |
|
Rake (fork angle)
|
24.5° |
|
Front suspension
|
Öhlins 43mm fully adjustable usd forks with TiN |
|
Rear suspension
|
Progressive linkage with fully adjustable Öhlins monoshock with top-out spring. Aluminium single-sided swingarm |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
330 mm (13.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
169.0 kg (372.6 pounds) |
|
Power/weight ratio
|
1.0059 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
|
Color options
|
White, black, red |
