General information |
Motorcycle name
|

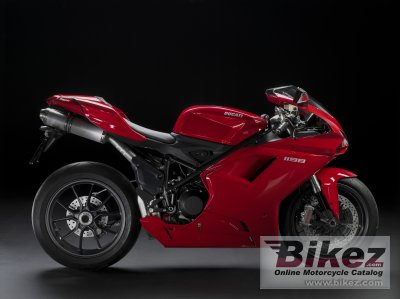

Ducati 1198 |
Year
|
2010 |
Category
|
Sport |
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1198.4 ccm (73.13 cubic inches) |
Engine type
|
V2, four-stroke |
Power
|
170.0 HP (124.1 kW)) @ 9750 RPM |
Torque
|
131.5 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM |
Compression
|
12.7:1 |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Marelli electronic fuel injection, elliptical throttle bodies |
Fuel control
|
Desmodromic valve control |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Clutch
|
Dry multiplate with hydraulic control |
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular steel Trellis frame in ALS 450 |
Rake (fork angle)
|
24.5° |
Front suspension
|
Showa 43mm with TiO fully adjustable usd forks |
Rear suspension
|
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
Front tire
|
120/70-ZR17 |
Rear tire
|
190/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
330 mm (13.0 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Dry weight
|
171.0 kg (377.0 pounds) |
Power/weight ratio
|
0.9942 HP/kg |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Wheelbase
|
1430 mm (56.3 inches) |
Fuel capacity
|
15.50 litres (4.10 US gallons) |
Other specifications |
Color options
|
Red, white |
Starter
|
Electric |
