Dinli DL 904 Lightning 20112011 Dinli DL 904 Lightning specifications, pictures, reviews and rating |

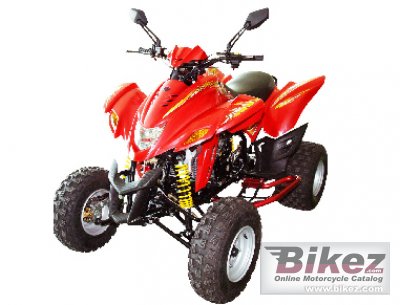

 2011 Dinli DL 904 Lightning. Picture credits - Dinli. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Dinli DL 904 Lightning |
| Year of manufacture | 2011 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 448.0 ccm (27.34 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 19.4 HP (14.2 kW)) @ 4700 RPM |
| Torque | 33.0 Nm (3.4 kgf-m or 24.3 ft.lbs) @ 3400 RPM |
| Top speed | 105.0 km/h (65.2 mph) |
| Compression | 11.6:1 |
| Fuel system | Carburettor. BSR-42 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Forced Pressure and Wet Sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Driveline | 2WD / 4WD/ Front differential locked 4WD. C.V.T with Reverse and 2 Speed Sub-Transmission. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual A-arm |
| Front wheel travel | 279 mm (11.0 inches) |
| Rear suspension | Swing Arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 21/7-10 |
| Rear tire | 20/10-12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 328.0 kg (723.1 pounds) |
| Power/weight ratio | 0.0593 HP/kg |
| Seat height | 916 mm (36.1 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1830 mm (72.0 inches) |
| Overall width | 1090 mm (42.9 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1305 mm (51.4 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Oil capacity | 2.50 litres (2.64 US quarts) |
| Other specifications | |
| Color options | Red/Orange/Black/Dark gray |
| Starter | Electric & kick |
