Dinli DL 902 20122012 Dinli DL 902 specifications, pictures, reviews and rating |

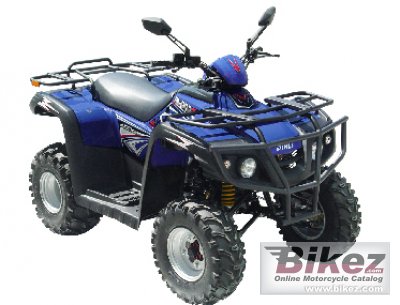

 2012 Dinli DL 902. Picture credits - Dinli. Submit more pictures. |
|
| General information | |
|---|---|
| Motorcycle name | Dinli DL 902 |
| Model year | 2012 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 448.0 ccm (27.34 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Hemispherical Combustion Chamber |
| Power output | 45.1 HP (32.9 kW)) @ 8250 RPM |
| Torque | 41.2 Nm (4.2 kgf-m or 30.4 ft.lbs) @ 7500 RPM |
| Top speed | 105.0 km/h (65.2 mph) |
| Compression | 10.8:1 |
| Fuel system | Carburettor. BSR42 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | CDI |
| Lubrication system | Oil Pump |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Manual Release, Multi-Plate |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual A-arm |
| Front wheel travel | 168 mm (6.6 inches) |
| Rear suspension | Swing Arm |
| Rear wheel travel | 197 mm (7.8 inches) |
| Front tire | 22/8-10 |
| Rear tire | 22/11-9 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 220.0 kg (485.0 pounds) |
| Power/weight ratio | 0.2048 HP/kg |
| Seat height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 1942 mm (76.5 inches) |
| Overall width | 1110 mm (43.7 inches) |
| Ground clearance | 310 mm (12.2 inches) |
| Wheelbase | 1260 mm (49.6 inches) |
| Fuel capacity | 12.80 litres (3.38 US gallons) |
| Oil capacity | 1.80 litres (1.9 US quarts) |
| Other specifications | |
| Color options | Metallic Blue/Metallic Orange/Metallic Black/Metallic Red |
| Starter | Electric |
| Comments | Made in Taiwan. |
