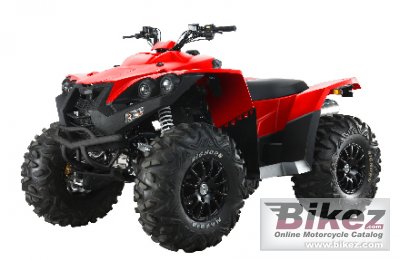

Dinli DL 703 20112011 Dinli DL 703 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Dinli DL 703 |
| Year | 2011 |
| Category | ATV |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 750.0 ccm (45.77 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 106.0 x 85.0 mm (4.2 x 3.3 inches) |
| Fuel system | Carburettor. BSR-42 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | CDI |
| Lubrication system | Forced Pressure and Wet Sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Centrifugal Clutch |
| Driveline | 2WD / 4WD/ Front differential locked 4WD. C.V.T with Reverse and 2 Speed Sub-Transmission. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual A-arm |
| Rear suspension | Dual A-arm |
| Front tire | 25/8-12 |
| Rear tire | 20/10-12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Wheels | Home |
| Physical measures and capacities | |
| Dry weight | 328.0 kg (723.1 pounds) |
| Seat height | 916 mm (36.1 inches) If adjustable, lowest setting. |
| Overall height | 1245 mm (49.0 inches) |
| Overall length | 2088 mm (82.2 inches) |
| Overall width | 1213 mm (47.8 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1305 mm (51.4 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Color options | Black, Red, Yellow, White, Blue |
| Starter | Electric & kick |
