General information |
|
Motorcycle name
|

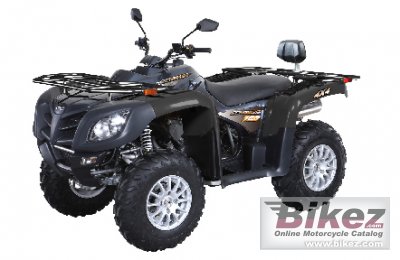

Dinli DL 700 |
|
Year model
|
2011 |
|
Type
|
ATV |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
694.0 ccm (42.35 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
40.0 HP (29.2 kW)) @ 6000 RPM |
|
Torque
|
48.0 Nm (4.9 kgf-m or 35.4 ft.lbs) @ 4500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Carburettor. BSR-42 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Forced Pressure and Wet Sump |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Centrifugal Clutch |
|
Driveline
|
2WD / 4WD/ Front differential locked 4WD. C.V.T with Reverse and 2 Speed Sub-Transmission. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Dual A-arm |
|
Rear suspension
|
Dual A-arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
20/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Home |
|
Physical measures and capacities |
|
Dry weight
|
298.0 kg (657.0 pounds) |
|
Power/weight ratio
|
0.1342 HP/kg |
|
Seat height
|
916 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2208 mm (86.9 inches) |
|
Overall width
|
1211 mm (47.7 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1305 mm (51.4 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Oil capacity
|
1.80 litres (1.9 US quarts) |
|
Other specifications |
|
Color options
|
Metallic Black, Metallic Red, Metallic Orange, Metallic Yellow |
|
Starter
|
Electric & kick |
