| General information |
|---|

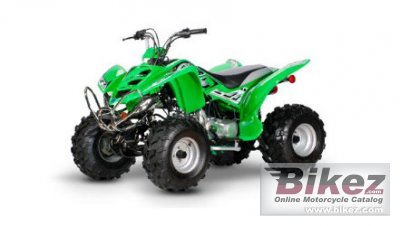

| Model: | Diamo Lightning 110 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | US$ 1896. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 107.00 ccm (6.53 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 5.50 HP (4.0 kW)) @ 8000 RPM |
| Fuel system: | Carburettor |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Monoshock |
| Rear suspension: | Dual shock |
| Front tyre: | 19/7-8 |
| Rear tyre: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 117.0 kg (258.0 pounds) |
| Power/weight ratio: | 0.0470 HP/kg |
| Seat height: | 671 mm (26.4 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,041 mm (41.0 inches) |
| Fuel capacity: | 7.57 litres (2.00 gallons) |
| Other specifications |
|---|
| Color options: | Blue, red, green pink |
| Starter: | Electric |
| Comments: | Gearbox with reverse |
