| DF Motor's profilation of this bike |
| The model is specially designed for use in northern territory across the world. There is a temperature controller close to carburetor to adjust temperature and to heat up so that the scooter can turn on easily in the winter season. |
|
General moped information |
|
Motorcycle name
|

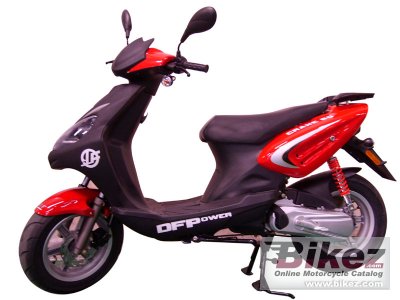

DF Motor Crane 50 |
|
Model year
|
2007 |
|
Category
|
Scooter |
|
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.2 ccm (3.00 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
4.2 HP (3.0 kW)) @ 7000 RPM |
|
Torque
|
4.4 Nm (0.4 kgf-m or 3.2 ft.lbs) @ 5000 RPM |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
2.50 litres/100 km (40.0 km/l or 94.09 mpg) |
|
Greenhouse gases
|
58.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Inox |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
90.0 kg (198.4 pounds) |
|
Power/weight ratio
|
0.0461 HP/kg |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
1830 mm (72.0 inches) |
|
Overall width
|
705 mm (27.8 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Other specifications |
|
Starter
|
Electric & kick |
