DF Motor Crane 125 20072007 DF Motor Crane 125 specifications, pictures, reviews and rating |

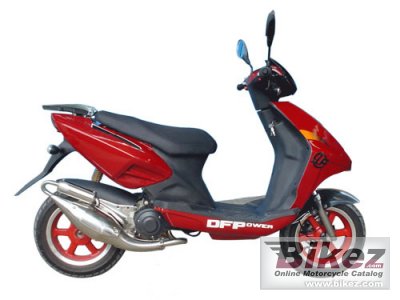

 2007 DF Motor Crane 125. Picture credits - DF Motor. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | DF Motor Crane 125 |
| Year | 2007 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 7.4 HP (5.4 kW)) |
| Torque | 8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) |
| Compression | 9.2:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Ignition | CDI |
| Lubrication system | Pressure and splash |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Fuel consumption | 3.00 litres/100 km (33.3 km/l or 78.41 mpg) |
| Greenhouse gases | 69.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic |
| Rear suspension | Swing Arm |
| Front tire | 120/70-12 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 109.0 kg (240.3 pounds) |
| Power/weight ratio | 0.0676 HP/kg |
| Overall height | 1131 mm (44.5 inches) |
| Overall length | 1839 mm (72.4 inches) |
| Overall width | 664 mm (26.1 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Comments | EEC Homologation. Model id: DF125T-3. |
