| Derbi's profilation of this bike |
| A new suit for the champion. This urban-off-road is facinating by is amazing design, its technical features and price-quality-relation. |
|
General moped information |
|
Motorcycle name
|

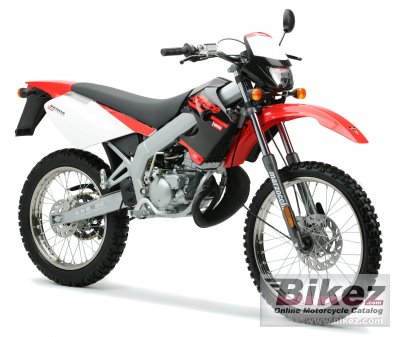

Derbi X-Race 50 R |
|
Model year
|
2006 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.9 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
8.5 HP (6.2 kW)) @ 9000 RPM |
|
Compression
|
11.1:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA 14 |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork, 36 mm |
|
Front wheel travel
|
195 mm (7.7 inches) |
|
Rear suspension
|
Monoshock |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Blue, Orange |
|
Starter
|
Kick |
