| Derbi's profilation of this bike |
| The new Terra Adventure is equipped with the 125 4T 4V (Euro3), the most advanced and best performing engine on the market. With this at the heart of the machine, Derbi has underlined its commitment to innovation and reaffirms itself as the absolute pioneer in keeping alive the dream of rally and adventure motorcycles.
|
|
General information |
|
Model
|

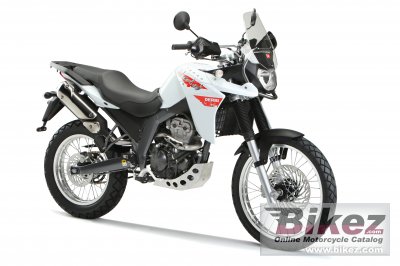

Derbi Terra Adventure 125 |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
| Price as new | Euro 4080. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.2 ccm (7.58 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 30 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Emission details
|
Euro III |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimetral double beam. Double steel swing arm. |
|
Front suspension
|
41 mm hydraulic fork |
|
Front wheel travel
|
175 mm (6.9 inches) |
|
Rear suspension
|
Mono-shock with adjustable spring pre-load. |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Seat
|
Dual |
|
Physical measures and capacities |
|
Dry weight
|
117.0 kg (257.9 pounds) |
|
Weight incl. oil, gas, etc
|
130.0 kg (286.6 pounds) |
|
Power/weight ratio
|
0.1282 HP/kg |
|
Seat height
|
861 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1451 mm (57.1 inches) |
|
Overall length
|
2192 mm (86.3 inches) |
|
Overall width
|
815 mm (32.1 inches) |
|
Wheelbase
|
1451 mm (57.1 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Color options
|
White, red |
|
Starter
|
Electric |
|
Electrical
|
Battery 12V 6Ah |
|
Comments
|
Made in Spain. |
