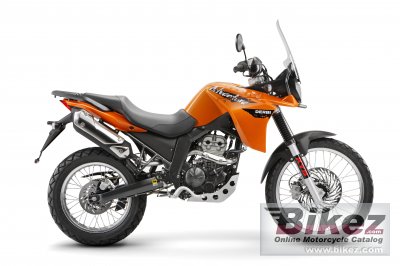

Derbi Terra Adventure 125 20112011 Derbi Terra Adventure 125 specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| The Terra Adventure 125, with the most advanced and effective Euro3 125 4-stroke 4V engine, is striking for its impressive silhouette, its evidently adventurous style and its robustness, making it the best 125 cc trail bike and the ideal companion for any adventure. |
| General information | |
|---|---|
| Model name | Derbi Terra Adventure 125 |
| Year of manufacture | 2011 |
| Type | Enduro / offroad |
| Price as new | Euro 3966. UK £ 3079. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.2 ccm (7.58 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 15.0 HP (10.9 kW)) @ 9250 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 58.0 x 47.0 mm (2.3 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. 30 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic CDI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate |
| Emission details | Euro III |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel perimetral double beam. Double steel swing arm. |
| Front suspension | 41 mm hydraulic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Mono-shock with adjustable spring pre-load. |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 117.0 kg (257.9 pounds) |
| Power/weight ratio | 0.1282 HP/kg |
| Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Overall height | 1408 mm (55.4 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 793 mm (31.2 inches) |
| Wheelbase | 1454 mm (57.2 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Color options | White/red |
| Starter | Electric |
| Electrical | Battery 12V 6Ah |
| Comments | Derbi bikes are made in Spain. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Derbi Terra Adventure 125 discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
