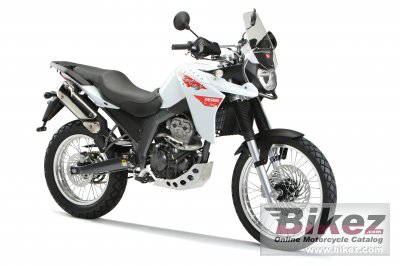

Derbi Terra Adventure 125 20102010 Derbi Terra Adventure 125 specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| The Terra Adventure 125 was created with the spirit of the numerous adventurers riding their motorcycle in the exploration of new and distant horizons, eager to challenge their very own limits. |
| General information | |
|---|---|
| Model | Derbi Terra Adventure 125 |
| Model year | 2010 |
| Category | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.2 ccm (7.58 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 15.0 HP (10.9 kW)) @ 9250 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 58.0 x 47.0 mm (2.3 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. 30 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic CDI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate |
| Exhaust system | Euro III |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel perimetral double beam. Steel swing arm. |
| Front suspension | 41 mm hydraulic fork |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Mono-shock with adjustable spring pre-load. |
| Rear wheel travel | 170 mm (6.7 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 121.0 kg (266.8 pounds) |
| Weight incl. oil, gas, etc | 134.0 kg (295.4 pounds) |
| Power/weight ratio | 0.1240 HP/kg |
| Seat height | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height | 1408 mm (55.4 inches) |
| Overall length | 2192 mm (86.3 inches) |
| Overall width | 815 mm (32.1 inches) |
| Wheelbase | 1451 mm (57.1 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Color options | Red/white/black |
| Starter | Electric |
| Comments | Derbi bikes made in Spain. |
