| Derbi's profilation of this bike |
| The Adventure version offers many significant changes over its predecessor, the Terra 125. It boasts 21” rear spoke wheels and 17” front wheels, Enduro tires, 41-mm larger diameter fork with rod cover, rear mono shock absorber for greater speeds and a bigger aluminum cover for the engine and frame. |
|
General information |
|
Model
|

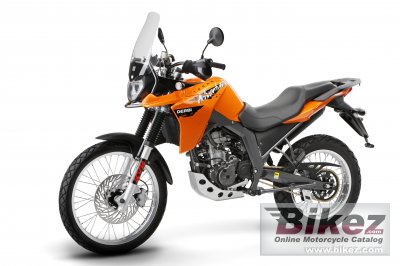

Derbi Terra Adventure 125 |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.2 ccm (7.58 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimetral double beam |
|
Front suspension
|
Hydraulic fork |
|
Front wheel travel
|
175 mm (6.9 inches) |
|
Rear suspension
|
Mono-shock with adjustable spring pre-load. |
|
Rear wheel travel
|
170 mm (6.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
130/90-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
121.0 kg (266.8 pounds) |
|
Power/weight ratio
|
0.1240 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1408 mm (55.4 inches) |
|
Overall length
|
2192 mm (86.3 inches) |
|
Overall width
|
815 mm (32.1 inches) |
|
Wheelbase
|
1451 mm (57.1 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Electric |
|
Comments
|
Made in Spain. |
