Derbi's profilation of this bike |
The Terra Adventure 125 was created with the spirit of the numerous adventurers riding their motorcycle in the exploration of new and distant horizons, eager to challenge their very own limits. Modern engines ensure high performance, reduced upkeep and respect for the environment.
|
General information |
Model
|

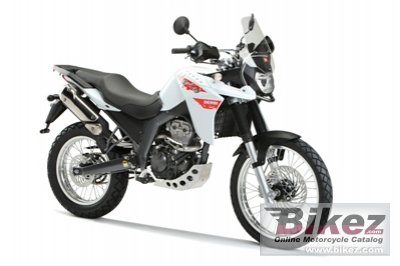

Derbi Terra Adventure 125 |
Model year
|
2008 |
Category
|
Enduro / offroad |
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.2 ccm (7.58 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
Compression
|
12.0:1 |
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Electronic CDI |
Lubrication system
|
Dry sump |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Clutch
|
Multi-plate |
Chassis, suspension, brakes and wheels |
Frame type
|
Double steel beam |
Front suspension
|
Hydraulic fork |
Front wheel travel
|
41 mm (1.6 inches) |
Rear suspension
|
Mono-shock with adjustable spring pre-load. 150 mm travel |
Front tire
|
90/90-21 |
Rear tire
|
120/90-17 |
Front brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
117.0 kg (257.9 pounds) |
Power/weight ratio
|
0.1282 HP/kg |
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
Overall height
|
1408 mm (55.4 inches) |
Overall width
|
793 mm (31.2 inches) |
Wheelbase
|
1454 mm (57.2 inches) |
Fuel capacity
|
11.00 litres (2.91 US gallons) |
Other specifications |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Further information |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 08 Derbi Terra Adventure 125 discussion group or the general Derbi discussion group. |
Related bikes | List related bikes for comparison of specs. |
|
Rating sample for this Derbi bike
|
Reliability for the 2008 Derbi Terra Adventure 125:
(66.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
