| Derbi's profilation of this bike |
| Its silent engine ensures an unrivalled riding feeling. Its low consumption and emissions make it environmentally friendly, in harmony with its habitat. Planet Earth. Planet Terra. |
| General information |
|---|

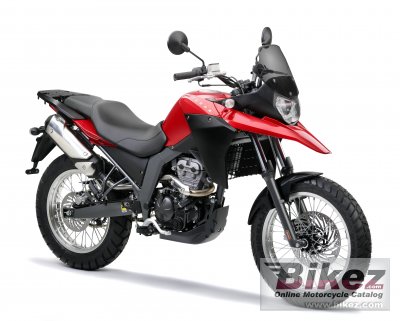

| Model: | Derbi Terra 125 |
| Year: | 2012 |
| Category: | Allround |
| Price as new: | Euro 3802. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 124.2 ccm (7.58 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 15.0 HP (10.9 kW)) @ 9250 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 58.0 x 47.0 mm (2.3 x 1.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. 30 mm |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Electronic CDI |
| Lubrication system: | Dry sump with integrated oil deposit |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi-plate in oil bath |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel double-beamed frame. Double steel swing arm. |
| Front suspension: | Hydraulic fork |
| Front wheel travel: | 150 mm (5.9 inches) |
| Rear suspension: | Mono-shock with adjustable spring pre-load. |
| Front tyre: | 100/90-18 |
| Rear tyre: | 130/80-17 |
| Front brakes: | Single disc |
| Diameter: | 280 mm (11.0 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 110.0 kg (242.5 pounds) |
| Power/weight ratio: | 0.1364 HP/kg |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height: | 1326 mm (52.2 inches) |
| Overall length: | 1976 mm (77.8 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Wheelbase: | 1326 mm (52.2 inches) |
| Fuel capacity: | 11.00 litres (2.91 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Other specifications |
|---|
| Color options: | Black, red, gray |
| Starter: | Electric |
| Comments: | Spanish brand. |
