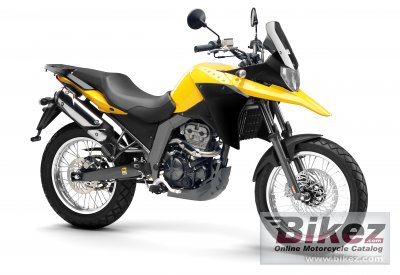

Derbi Terra 125 20102010 Derbi Terra 125 specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| The city constrains you. Look for new dimensions. Off road. The best dual-sport bike of its class, with the new Derbi 125 4-stroke 4V-engine. The answer to the impossible. |
| General information | |
|---|---|
| Model name | Derbi Terra 125 |
| Year model | 2010 |
| Type | Allround |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 124.2 ccm (7.58 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 15.0 HP (10.9 kW)) @ 9250 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 58.0 x 47.0 mm (2.3 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. 30 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | CDI |
| Lubrication system | Dry sump with integrated oil deposit |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate in oil bath |
| Exhaust system | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Mono-shock with adjustable spring pre-load. |
| Front tire | 100/90-18 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 117.0 kg (257.9 pounds) |
| Weight incl. oil, gas, etc | 130.0 kg (286.6 pounds) |
| Power/weight ratio | 0.1282 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length | 2144 mm (84.4 inches) |
| Overall width | 815 mm (32.1 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Comments | Derbi is a Spanish brand |
