General moped information |
|
Model
|

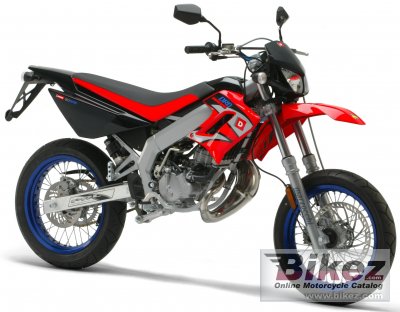

Derbi Supermotard Racer |
|
Year of manufacture
|
2005 |
|
Type
|
Super motard |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA-14 |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork, 36 mm |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Lineal gas single absorber |
|
Rear wheel travel
|
50 mm (2.0 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Overall height
|
1300 mm (51.2 inches) |
|
Overall length
|
2050 mm (80.7 inches) |
|
Overall width
|
695 mm (27.4 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
