| Derbi's profilation of this bike |
| The elegance of the Sonar lines takes on a sporty touch with the graphics emphasising the youthful character that´s typically Derbi. Great style and forceful sportiness are also implied by the black colour of the big rims, perfectly matched with the classic, sober colours of the new Sonar´s bodywork. |
|
General moped information |
|
Model
|

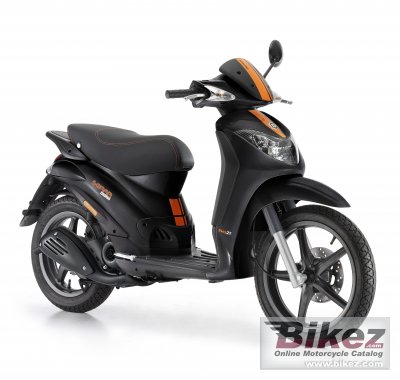

Derbi Sonar 50 2T |
|
Year
|
2012 |
|
Category
|
Scooter |
| Price as new | Euro 1850. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.4 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
4.6 HP (3.4 kW)) @ 7250 RPM |
|
Torque
|
4.7 Nm (0.5 kgf-m or 3.5 ft.lbs) @ 6750 RPM |
|
Compression
|
10.9:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal |
|
Driveline
|
Automatic CVT |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork. |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Single shock absorber |
|
Rear wheel travel
|
64 mm (2.5 inches) |
|
Front tire
|
90/80-16 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Wheels
|
5-spoke black wheels |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Weight incl. oil, gas, etc
|
103.0 kg (227.1 pounds) |
|
Power/weight ratio
|
0.0484 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall length
|
1960 mm (77.2 inches) |
|
Overall width
|
735 mm (28.9 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric & kick |
|
Carrying capacity
|
Compartment underthe seat to hold a jet helmet. |
|
Comments
|
Spanish bike. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Derbi Sonar 50 2T discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Derbi moped
|
Reliability for the 2012 Derbi Sonar 50 2T:
 (72.4 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
