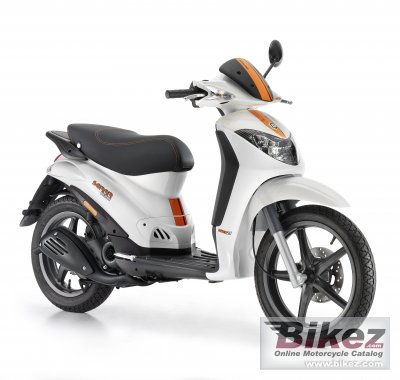

Derbi Sonar 50 2T 20102010 Derbi Sonar 50 2T specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| Derbi Sonar is the ideal scooter for getting through the traffic: fun, nimble and snappy. At the same time, it´s a valid solution for female users, thanks to its manoeuvrability and smoothness. |
| General moped information | |
|---|---|
| Model | Derbi Sonar 50 2T |
| Year of manufacture | 2010 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.4 ccm (3.01 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 4.6 HP (3.4 kW)) @ 7250 RPM |
| Torque | 4.7 Nm (0.5 kgf-m or 3.5 ft.lbs) @ 6750 RPM |
| Compression | 10.9:1 |
| Bore x stroke | 40.0 x 39.3 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Lubrication system | Mechanical oil pump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork. |
| Front wheel travel | 76 mm (3.0 inches) |
| Rear suspension | Single shock absorber |
| Rear wheel travel | 64 mm (2.5 inches) |
| Front tire | 90/80-16 |
| Rear tire | 110/80-14 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 140 mm (5.5 inches) |
| Physical measures and capacities | |
| Dry weight | 95.0 kg (209.4 pounds) |
| Power/weight ratio | 0.0484 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length | 1960 mm (77.2 inches) |
| Overall width | 735 mm (28.9 inches) |
| Wheelbase | 1340 mm (52.8 inches) |
| Fuel capacity | 6.00 litres (1.59 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric & kick |
| Comments | Spanish made scooter. |
