| Derbi's profilation of this bike |

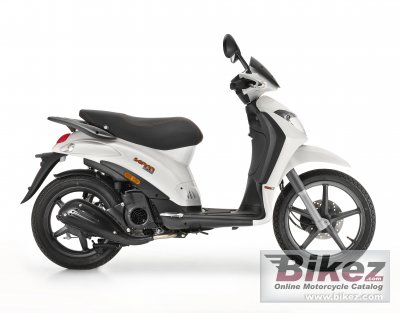

| Derbi once again confirms its ability to satisfy every type of customer, bringing out the new Sonar - a sparkling high-wheeled scooter with either 50cc or 125cc engine. |
|
General information |
|
Motorcycle name
|
Derbi Sonar 125 4T |
|
Year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
10.6 HP (7.7 kW)) @ 8000 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 7250 RPM |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
32 mm fork. |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Single shock absorber |
|
Rear wheel travel
|
64 mm (2.5 inches) |
|
Front tire
|
90/80-16 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
99.0 kg (218.3 pounds) |
|
Weight incl. oil, gas, etc
|
109.0 kg (240.3 pounds) |
|
Power/weight ratio
|
0.1071 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1930 mm (76.0 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Wheelbase
|
1325 mm (52.2 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Electric |
|
Comments
|
Spanish brand. |
