| Derbi's profilation of this bike |
| A New Suit for the Champion. Being the market leader gives reason to be proud, but at the same time demands to take over responsibility. |
|
General moped information |
|
Model name
|

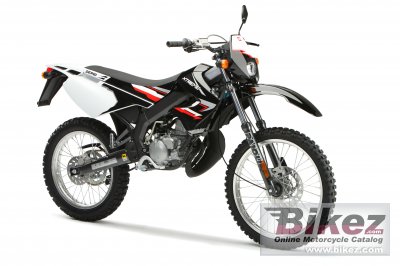

Derbi Senda XTreme 50R |
|
Year model
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork. |
|
Front wheel travel
|
190 mm (7.5 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
182 mm (7.2 inches) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1222 mm (48.1 inches) |
|
Overall length
|
2222 mm (87.5 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Kick |
|
Comments
|
Derbi bikes are made in Spain. |
