| Derbi's profilation of this bike |
| This Urban-Off-Road is fascinating by its amazing design, its technical features and its price-quality-relation. Being the market leader gives reason to be proud, but at the same time demands to take over responsibility.
|
|
General moped information |
|
Model name
|

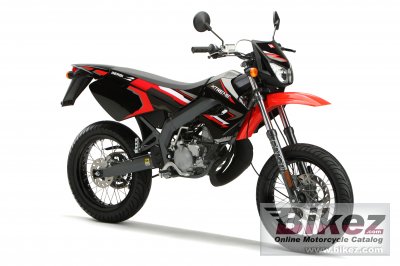

Derbi Senda Xtreme 50 SM |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
40 mms. hydraulic fork. |
|
Front wheel travel
|
190 mm (7.5 inches) |
|
Rear suspension
|
Monoshock with progressive link system. |
|
Rear wheel travel
|
182 mm (7.2 inches) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
97.0 kg (213.8 pounds) |
|
Weight incl. oil, gas, etc
|
105.0 kg (231.5 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1222 mm (48.1 inches) |
|
Overall length
|
2222 mm (87.5 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Red/black/gray |
|
Starter
|
Kick |
|
Comments
|
Spanish bike. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Derbi Senda Xtreme 50 SM discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Derbi moped
|
Racing track capabilities for the 2010 Derbi Senda Xtreme 50 SM:
 (70.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
