| Derbi's profilation of this bike |
| This Urban-Off-Road is fascinating by its amazing design, its technical features and its price-quality-relation. |
| General moped information |
|---|

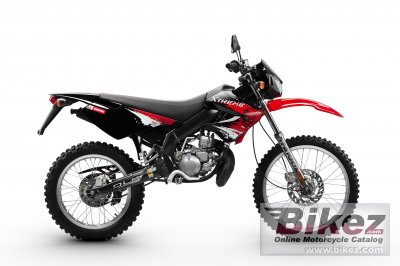

| Model: | Derbi Senda Xtreme 50 R |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | 51.5 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | Euro 2359. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 49.90 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 11.5:1 |
| Bore x stroke: | 39.9 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. 17.5 |
| Ignition: | Electronic CDI |
| Lubrication system: | Oil pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi-disc |
| Emission details: | Euro III |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Single spar steel frame |
| Front suspension: | 36mm hydraulic fork. |
| Front wheel travel: | 190 mm (7.5 inches) |
| Rear suspension: | Monoshock. |
| Rear wheel travel: | 182 mm (7.2 inches) |
| Front tyre: | 80/90-21 |
| Rear tyre: | 110/80-18 |
| Front brakes: | Single disc. Dual piston floating calliper |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 96.0 kg (211.6 pounds) |
| Seat height: | 900 mm (35.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,222 mm (48.1 inches) |
| Overall length: | 2,119 mm (83.4 inches) |
| Overall width: | 817 mm (32.2 inches) |
| Wheelbase: | 1,413 mm (55.6 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Color options: | Red/black/gray, yellow/black/grey |
| Starter: | Kick |
| Electrical: | 12V 4Ah battery |
| Comments: | DRD is an abbreviation of Derbi Racing Development. |
