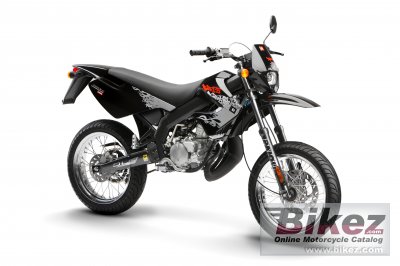

Derbi Senda XRace 50 SM 20092009 Derbi Senda XRace 50 SM specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| This Urban-Off-Road is fascinating by its amazing design, its technical features and its price-quality-relation. |
| General moped information | |
|---|---|
| Motorcycle name | Derbi Senda XRace 50 SM |
| Model year | 2009 |
| Category | Super motard |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.9 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 39.9 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system | Carburettor. 17.5 mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Oil pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Multidisc |
| Front suspension | 36 mm. hydraulic fork. |
| Front wheel travel | 195 mm (7.7 inches) |
| Rear suspension | Monoshock. |
| Rear wheel travel | 182 mm (7.2 inches) |
| Front tire | 100/80-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 97.0 kg (213.8 pounds) |
| Seat height | 855 mm (33.7 inches) If adjustable, lowest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 1980 mm (78.0 inches) |
| Overall width | 805 mm (31.7 inches) |
| Wheelbase | 1355 mm (53.3 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Color options | Black, red |
| Starter | Kick |
| Comments | Made in Spain. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Derbi Senda XRace 50 SM discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used mopeds?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 Derbi Senda XRace 50 SM or advertise any other MC for sale. You can list all 2009 Derbi Senda XRace 50 SM available and also sign up for e-mail notification when such mopeds are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the moped's engine performance, repair costs, etc.| Rating sample for this Derbi moped | |
Reliability for the 2009 Derbi Senda XRace 50 SM:  (79.8 out of 100)Click here for complete rating. |
|
